With our Ridgiduct, Ridgicoil and Polyduct ranges, we offer a comprehensive choice of cable protection solutions for lighting applications.
Meeting the highest standards
Ridgiduct and Ridgicoil comply with BS EN 61386-24:2010, type 450N with normal duty impact resistance. Ridgiduct is also BBA approved.
RIDGIDUCT HV Power - Class 1
Manufactured from polypropylene, Ridgiduct Power HV offers a stiff, yet flexible cable protections system, which complies fully with ENATS 12-14 Class 1 specification. It is available in sizes 100, 125 and 150mm with a black outer and red inner as standard, but can also be manufactured with a red outer and red inner.
Key Features and Benefits:
- Complies with ENATS 12-24 Class 1 specification 450N compressive strength at 75°C
- Complies with BS EN 61386-24:2010, 750N normal duty impact resistance
- Suitable for use with high-voltage, XLPE sheathed cables
- IP4X rated system(dust protection)
- Available with a red inner wall and red or black outer wall for increased identification
- Supplied with an integral coupler
- Full range of fittings and accessories available
- Low weight, flexible, durable and high in strength

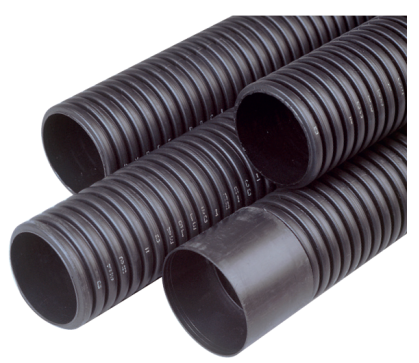

RIDGIDUCT Power – Class 2
Manufactured from high density polyethylene (HDPE) , Ridgiduct Power offers a stiff yet flexible twinwall system that is light in weight and robust to easily outperform alternative products. Ridgiduct Power comes in sizes 100, 125 and 150mm and fully complies with ENATS 12-24 Class 2 specification.
Key benefits
- Complies with ENATS 12-24 Class 2 specification, 450N compressive strength at 50°C Complies with BS EN 61386-24:2010, Type 750N, normal duty impact resistance
- A preferred choice for Distribution Network Operators (DNOs)
- Network Rail PADS approved
- Supplied with an integral coupler
- IP4X system (dust protection)
- Low weight, flexible, durable and high strength
- Good impact resistance, even at low temperatures
- Available in an alternative twinwall split duct form for easy installation around existing cables with minimal change in strength

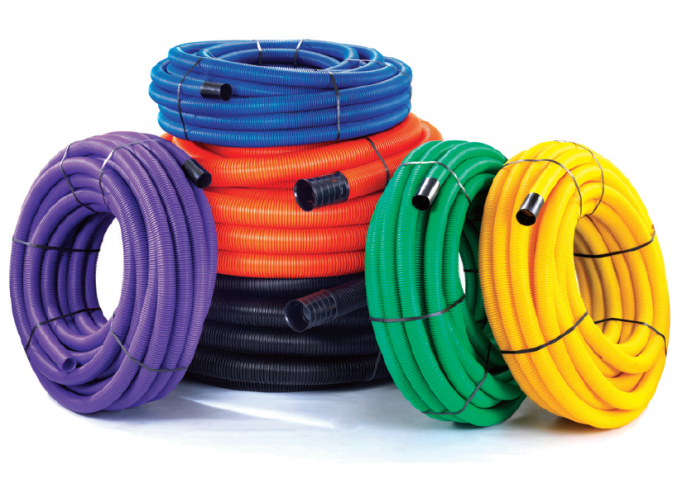

RIDGICOIL
Ridgicoil is a coiled twinwall cable protection, manufactured from polyethylene with excellent impact resistance even at low temperatures. It has exceptional durability with flexibility which eliminates the need for special bends. With a smooth bore, Ridgicoil has a low co-efficient of friction for ease of cable installation.
Ridgicoil is available for power, motorway communications, lighting and utilities applications in 25m and 50m coils. Lighting in Scotland has specific requirements and for this purpose we manufacture a single wall cable protection range, supplied with 1 coupling fitted per length
Ridgicoil is a coiled polyethylene structured walled cable protection system. It is flexible to eliminate the need for specialist bends and has a smooth bore to reduce friction during installation. It is available in a variety of diameters, lengths and colours meeting NJUG coding to provide cable protection for electricity, street lighting, motorway communications, gas, water and cable television communications.
Key Features and Benefits
- Complies with BS EN 61386-24:2010, Type 450N, normal duty impact resistance
- Network Rail PADS approved
- Manufactured from polyethylene with excellent impact resistance at low temperatures
- Long coil lengths for reduced jointing
- Factory installed polypropylene twine
- Optional sealing rings for sealed systems
- Supplied with an integral coupler
- Low weight, flexible, durable and high strength

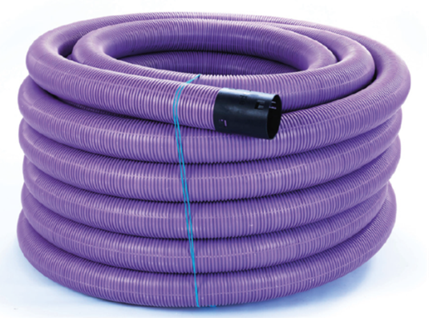

Scottish Streetlight Ducting
Lighting in Scotland has specific requirements and for this purpose we manufacture a single wall cable protection range. Supplied with 1 coupling fitted per length, our Scottish lighting system is available in 60mm and 100mm diameter coils.
Applications
For lighting applications.
Key benefits
- Ease of use and transportation
- Long coil lengths for reduced jointing
- Low weight high strength
- Can be used for trenchless applications
- Factory installed connector
